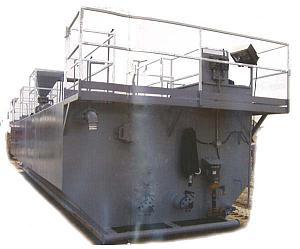

Our rental tanks were developed with a patented system that is efficient and environmentally friendly. The many applications of the Rental Tanks include a Floc tank for clear water drilling, a dewatering tank, a premix tank, a holding tank, shearing & heating polymers, and mixing lost circulation material.

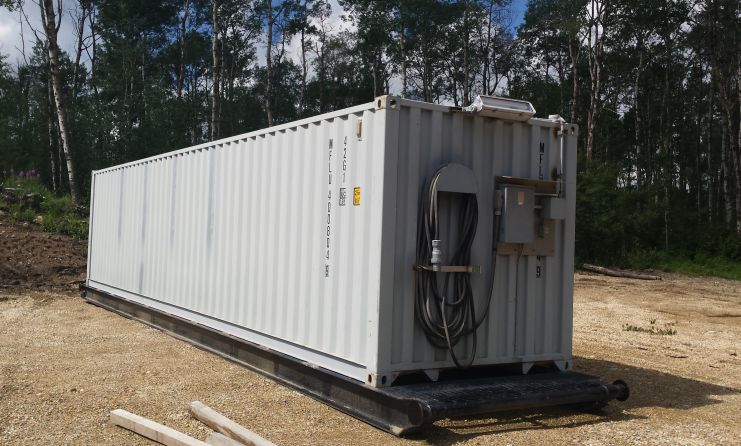

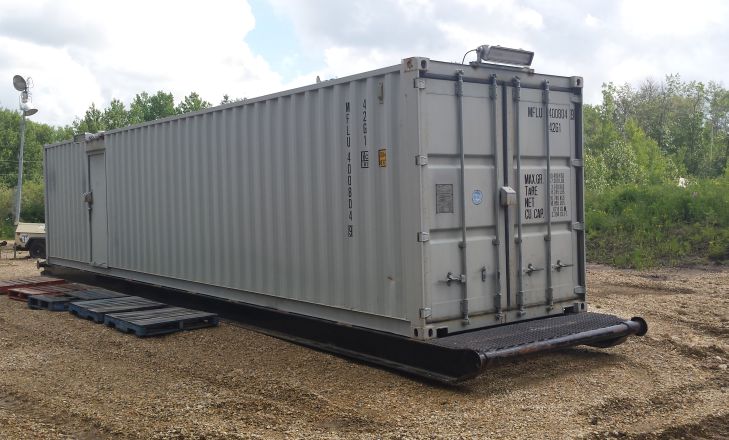

     The Tank System is one tank 6’ X ll.5’ X 40’ divided into 4 compartments. The 6” pump sits in the bottom of the 4th compartment which supplies fluid to a 6” mudroll. There are two guns in each compartment for stirring. The centrifuge suction line has bridge gates so you can draw fluidized solids from any compartment. The hopper is plumbed into the 6” mudroll.

Features of the Tank:

° The drill solids removed with centrifuges minimizes water usage
° Limits use of a vacuum truck
° Faster R.O.P. with clear water
° Gne tank systems which is more cost effective for transporting
° These Tanks are a larger size tank that hold 70M³for storage and displacement, and uses 40M³ when floc water drilling
° lt’s easy to rig up with less moving parts to break down or freeze up
° Can be used from spud to release
° A steam coil in one 20M³ compartment to heat polymers
° Common voltage plug-ins:
               One 3W4P 30 amp 460 volts
               One 4W4P 30 amp 208 volts
° Dump gates in all compartments
° Easier to strip mud, can start with less volume using one compartment

Safety features of the tank:

° Proper lighting on the surface
° Wider stairway for easier access
° The walkway is clear of obstruction and 4.5 ft wide
° There are raised handles for guns & valves for easier use
° Steel gates going into compartments with proper handrail
° Higher ladders for easy access into the compartment
